Consumer Product Prototype
Complex Stainless Steel Oven Design
Mechanical Design
Manufacturing
Documentation
Rendering & Visualization
Services Provided:
Computational Fluid Dynamic (CFD)
Rendering & Visualization
$1,100
Manufacturing Documentation
$1,750
Mechanical Design
$2,350
Total Project Cost:
$5,200
Project Deliverables:
All Component CAD Models (.STEP, .IGS) | 10+ 3840x2880 Rendered Images | 5+ Rendered Animations | 72-Page Manufacturing Document
Digital Twin
Complete digital twin right down to the nuts and bolts. The image shows the complex internal structure and insulation.
Elaborate Technical Information
72-page manufacturing document, including folded and non-folded components, with full DFM analysis.
Modular Design
Computational Fluid Dynamic (CFD)
Designed with the product ecosystem in mind, this is an air-pump-powered pellet smoker accessory.

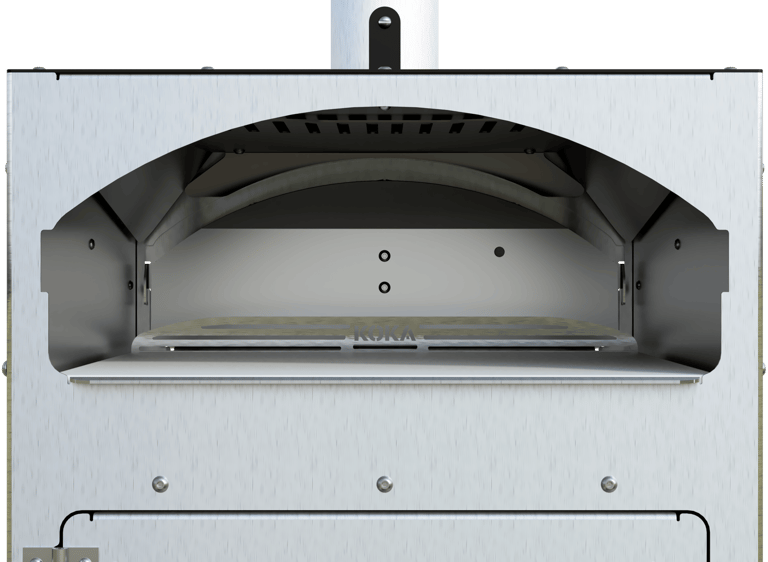

The entire internal flow path was modelled from the burn chamber to the exhaust for optimal performance.
